Switch-mode Rectifiers for Plating > Options
Previous | Next
Options
 Description
Part Number
PDF File
Module Control Card - CTRD02
Module Control Card - CTRD02

  • Wide current / voltage regulation range:
    • 2% - 100% of max current
    • 5% - 100% of max voltage
  • Fast feedback loop and fully differential output feedback
    • Lower Current Output Ripple (especially 300 Hz)
    • Reduced Voltage output ripple from 10% to 3% (in voltage mode operation)
  • Min Pulse Control down to 0.2 micro seconds allows to improve load regulation
  • Active Blanking of Pulse to control medium and high voltage applications and improve regulation in low voltage
  • Slope Compensation to improve output stability and ripple
  • Improved Immunity from:
    • Interferences due to shunt wired via coaxial cable and frequency range of control circuit
    • High voltage peaks due to Tantalum free capacitors
  • Protection of FAN (overcurrent and short circuit) by a Mosfet circuit instead of fuse
  • Improved reliability with Tantalum free capacitors
  • Standard on pulse (PP) and pulse reverse (PPR) rectifiers and over 200vdc rectifiers
  • Recommended for voltage controlled processes
4 Line Display
  • 1st line: Firmware name and release
  • 2nd line: Actual Volt, ampere
  • 3rd line: Ampere meters in A/hour or A/minute
  • 4th line: Thermal alarm, errors.

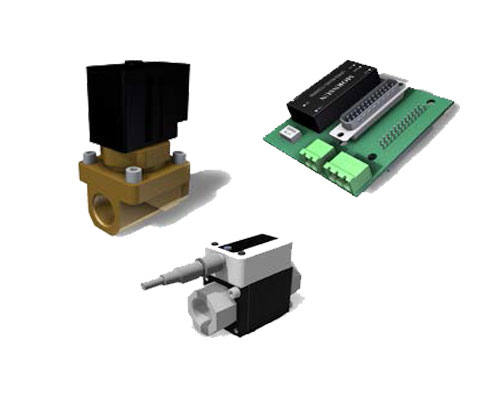

Water Flow Sensor and Solenoid
Water Flow Sensor and Solenoid

  • Water cooled rectifier optional for low water flow rate alarm
    • WFS20A (flow rate: up to 20 L/min)
    • WFS40A (flow rate: 20 to 40 L/min)
  • Features:
    • adjustable Flow Sensor to assure minimum required flow rate
  • Benefits:
    • assures minimum water flow rate
    • solenoid can be used to stop circulation of cold water when rectier is in stand-by, thus preventing potential condensation
  • Flow Sensor and Solenoid are placed outside the rectifier for an easy assistance and not connected to the rectifier at the time of shipping. Wiring and Interface Board (protected by metal box) are already installed on the rectifier.
  • Main components:
    • Interface Board
      • FPN: IOW20B
      It is used for powering the solenoid and handling the flow sensor signal for low water flow rate alarm. This board is connected to the 25pin D-sub connector of CPU through the corresponding female connector on PCB. On the board, screw connectors CN1/CN2 can be used for RS485 network (with termination, pull-up and pull-down resistors activable by dip switch).
    • Solenoid
      • FSN: 8630-40-001
      (Brand: SMC | P/N: VXZ242FGA): servo-solenoid, 24VDC, 7W (low power consumption), NC, G 1/2" , brass body.
    • Flow Sensors
      • FSN: 8630-40-007
      (Brand: IFM | P/N: SV4200): with integrated display, range 1 to 20L/min., G 1/2" , 24Vdc, PNP

      FSN: 8630-40-006
      (Brand: IFM | P/N: SV5200): with integrated display, range 2 to 40L/min., G 1/2" , 24Vdc, PNP
  • Available only on Q500 rectifiers, single tower or multitower system.
  • Compatible with Profibus-DP, Devicenet, Profinet and Ethernet/IP communication adapters. Not compatible with Analogue Interface (ANL002).
  • Flow Sensor and Solenoid can be sold together or separately.
Analogue Cards
The ANL card is a microprocessor driven electronic card which is to be connected to the RS232 serial port of the rectifier's CPU card. Available for DC and DCR machines only.
It is able to accomplish all the following operations:
  • 6 DIGITAL INPUTS - from 24Vdc contacts
    • Start/Stop selection.
    • Configuration of 1 or 2 potentiometers for simultaneous manual control of current and voltage.
    • Driving mode selection: current or voltage. Used only if a potentiometer is configured.
    • Preset function push-button. While rectifier is stopped, it allows to pre-setting on an external amperemeter and voltmeter the desired value of the current and/or voltage before actually starting the rectifier.
    • Direct/Reverse polarity selection (Only for DCR machines).
    • Available for future options.
  • 6 DIGITAL OUTPUTS - Solid-state relays (TLP523-4)
    • Start/Stop indication.
    • Rectifier status indication.
    • Direct/Reverse polarity indication (Only for DCR and PPR machines)
    • Driving mode indication: current or voltage.
    • Dosing pump activation. This output is activated for a pre-defined time when the rectifier's TOTAL A/h meter exceeds a pre-defined limit value. Pump activation time and A/h threshold value must be configured on the rectifier's operator panel.
    • Available for future options.
  • 2 ANALOGUE INPUTS
    For current and voltage regulation. Inputs are either from manual potentiometers or from PLC analogue signals. Potentiometer’s value must be between 10kΩ and 22kΩ.
  • 2 ANALOGUE OUTPUTS
    For current and voltage readings.


Communication Adapter
Communication adapter
Communication adapter with PROFIBUS-DP

Communication adapter with PROFINET
Communication adapter with ETHERNET IP
Communication adapter with DEVICENET
REMC - Remote Control & Master-REM
The remote control unit is an electronic device that communicates with the Quasar rectifiers via serial bus. It is optional for single tower rectifiers (REMC) and necessary for multitower systems (Master-REMC). It is available in many configurations with different power supplies, displays, optional inputs, isolated analog channels and communication protocols.
  • DISPLAY
    • 1-line (standard) or 4-line display available for each configuration
  • OPTIONAL INPUTS
    • Combinations of potentiometers and selectors for:
      • - Start/Stop selection
      • - Manual/Automatic operation mode selection
      • - Direct/Reverse polarity selection
      • - Current/Voltage regulation mode selection
      • - Current or voltage adjustments
  • RESET BUTTON
    • Reset your remote control
    • Easy way to change the parameters
  • POWER SUPPLPY
    • 24 VDC (standard)
    • 24 VAC
    • Wide range 85 - 264 VAC
  • 3 ANALOGIC I/O 0-10V
    • Opto-isolation of Analog I/O (optional):
      • - opto-isolator for Analogic I/O 0-10V and converter for 4-20mA (3 channels)
  • DB25 OR INTERNAL DIN RAIL
    • External DB25 port or internal DIN rail connector to interface with rectifier
  • MULTI-TOWER INTERCONNECTION (Master-REMC)
  • Opto-isolated voltage feedback input
    • Connect the voltage feedback directly to the output bars of the rectifier
  • Communication adapters (optional)
    • Communication adapter for Profibus-DP, Devicenet, Profinet, EthernetIP and Modbus-TCP can be installed inside the remote unit
  • Serial bus for Modbus-RTU / ASCII (optional)
    • Modbus-RTU and ASCII protocols are available on DIN rail connector (internal converter required)

For RS485 Network
Assembled RS485 Comm Cable D-Shell 25 pin to D-Shell 25 pin w/ 380 Ohm bias resistor.
Add: How many meters req of RS485 cable (3*AWG22)
Input/Output screw terminal for RS485 network (Q100)
Input/Output screw terminal for RS485 network (Q500)
Input/Output screw terminal for RS485 network (Q300)
Programming Cable for Flashing CPU/REM
It is needed to flash inside CPU or REM a new firmware that has been released to add new capabilities, or in case a new configuration is needed (like adding a new communication interface).
The flashing cable is connected on one side to a RS232 port on the PC, and on the other side to the DB25 connector available on the CPU or REM boards.

Length: 1.5m
