S075 is the single-phase unit up to 1500 W. However, the rectifier can be interconnected with other S075 units to increase the total power. It comes in either a single-phase full-waveform input or an active front-end option that significantly reduces harmonics and improves the PF. It comes in a desktop form factor, making it ideal for compact, simplified, and easy-to-service installations. Manual or automatic control is possible, which allows programming waveforms, monitoring Ah, and more. Reversed output and pulsed waveforms are also available.

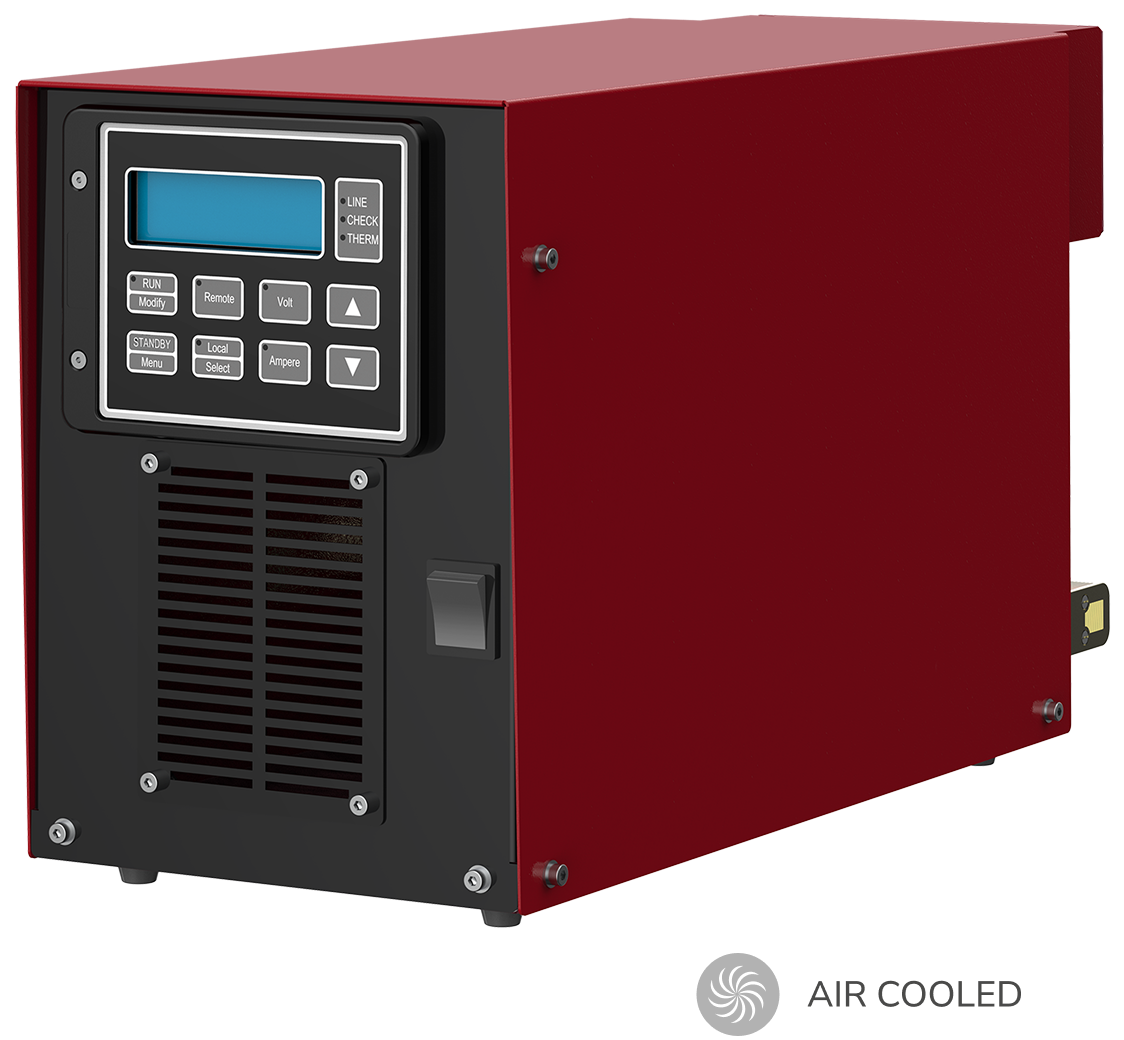

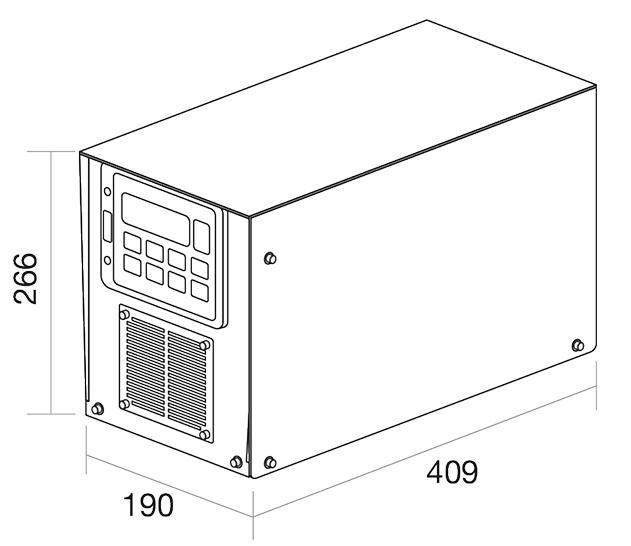

S075 SINGLE PHASE
AIR COOLED
UP TO 250 A
- Single phase rectifier
- Up to 1500 W in the same case
- Desktop and Wall versions
- Manual or automatic controlled
- Ah counter, ramp software and more
- Ease of service
- Expandable for more power
- Reverse polarity
- Pulse plating available
| MAIN VOLTAGE (3 PHASE) | 120 / 230 VAC ± 10% / 50 - 60 Hz |
| MAX. OUTPUT POWER | 1500 W |
| MAX. OUTPUT VOLTAGE | 6 - 150 VDC |
| MAX. OUTPUT CURRENT | 250 A DC |
| CURRENT RIPPLE | <2% (<1% on request) |
| OPERATION MODE | Current or voltage control |
| CURRENT REGULATION RANGE | 2 - 100% |
| VOLTAGE REGULATION RANGE | 5 - 100% |
| ACCURACY | 1% of full scale |
| POWER FACTOR | 0.60 @@ rated load (standard) >0.95 @@ rated load (with optional PFC) |
| EFFICIENCY | up to 85% @@ rated load |
| COLOR | RAL 3004 |
| COOLING | Air |
| DEGREE OF PROTECTION | IP31 Air cooled |
| WEIGHT | Max. 11 kg |
| AMBIENT TEMPERATURE | 40ºC |
GENERAL OPTIONS
REVERSE POLARITY
Allows switching the output between forward and reverse polarity.
1MS PULSE
This function is available when rise and fall times faster than 1 second are critical for the production process. Done by a combination of software and a selection of electrical components. Recipe patterns can be followed by controlling the CPU to achieve a rise time and fall time of 1ms with no overshoot when using resistive loads.
COMM. PROTOCOLS
A wide range of industrial communication standards via a certified HMS AnyBus IC. Communication protocols are not CPU software dependent and are interchangeable with ease. The Data Map structure is not communication protocol dependent, allowing for simplified system integration. Optional communication protocols: Profibus-DP, DeviceNet, EthernetIP, Profinet, Modbus-TCP.

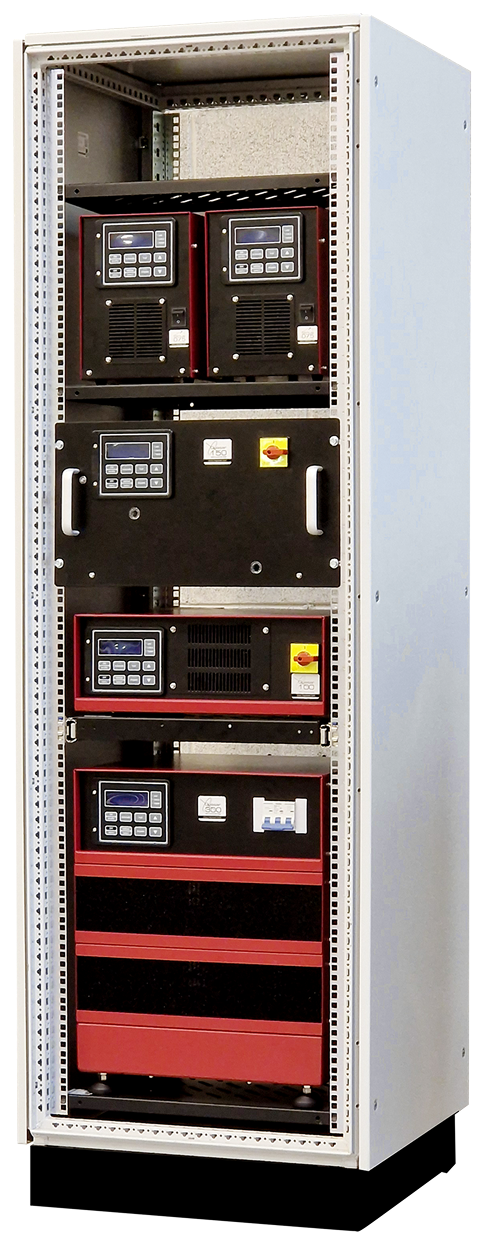

MULTI-TOWER CONNECTION
This function is available when rise and fall times faster than 1 second are critical for the production process. Done by a combination of software and a selection of electrical components. Recipe patterns can be followed by controlling the CPU to achieve a rise time and fall time of 1ms with no overshoot when using resistive loads.
OPERATING TEMP
Operating ambient temperatture up to 50 C with derating.
ACCESORIES
Remote Control
REM8E, 24VDC / 24VAC
REM8, 85-264VAC
RSM09A
QUASAR AND VEGA RECTIFIER SIMULATOR (with CPU090, 4L display)
