APPLICATIONS

CRS rectifiers deliver precision DC, PP, and PPR power across the full spectrum of industrial surface treatment, electroplating, and electrochemical processes — engineered for the most demanding environments worldwide.

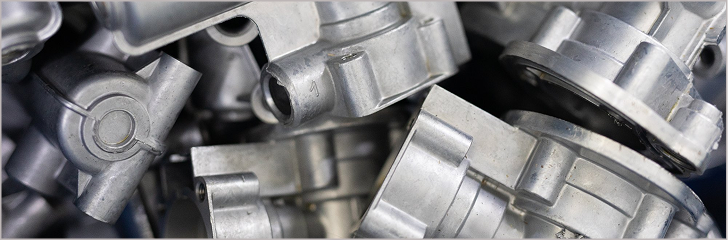

Aluminium hard anodizing application
ANODIZING

ALUMINIUM HARD ANODIZING

Electrochemical process growing a thick oxide layer on aluminum. PP and PPR waveforms reduce anodizing time by 30% and prevent film burning – compatible with alloys 2024, 7075, ADC12.
AutomotiveAerospaceDefence
VOLTAGE
60 - 120 V
OUTPUT TYPE
DC, PP, PPR
RIPPLE
N/A
V820

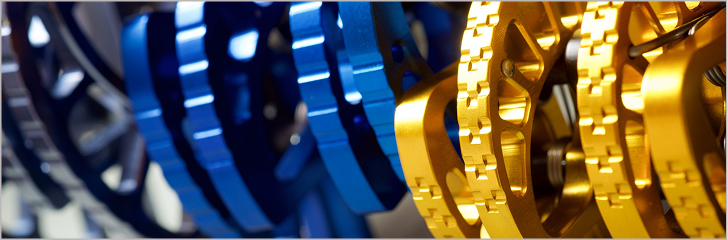

Aluminium electrolytic coloring application
ANODIZING

ALUMINIUM ELECTROLYTIC COLORING

Drives metal ions (tin, cobalt, nickel) into anodized pores using AC or DC waveforms. One CRS unit replaces separate DC and AC power supplies – sine wave 20-100 Hz for faster, more uniform coloring.
AutomotiveConsumer ElectronicsIT InfrastructureMobile Ph
VOLTAGE
9 - 25 V
OUTPUT TYPE
DC, DCR, PPR
RIPPLE
N/A
V820V700

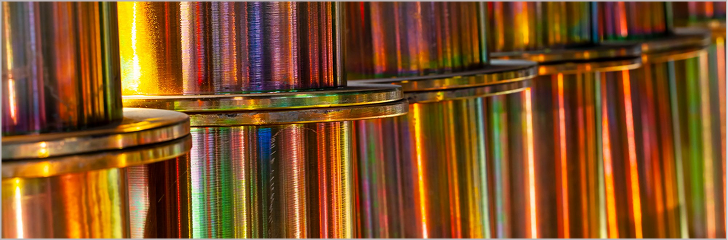

Titanium coloring application
ANODIZING

TITANIUM COLORING

Produces vivid interference colors on titanium without dyes. Color is determined entirely by applied voltage – independent of current or time. Requires ultra-precise voltage control and <1% ripple.
JewelleryMedical ImplantsArchitectureArtistic Objects
VOLTAGE
15 - 130 V
OUTPUT TYPE
DC
RIPPLE
< 1%
Q500BQ100

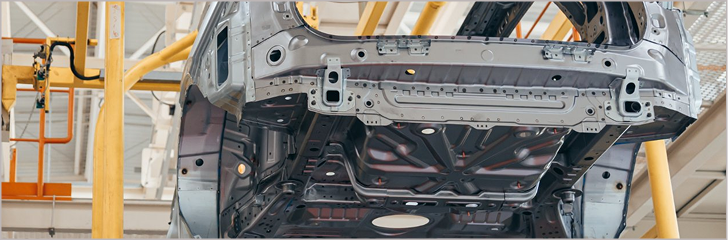

E-coat electrophoretic coating application
GALVANIC & PLATING

E-COAT (ELECTROPHORETIC COATING)

Deposits uniform, corrosion-resistant paint onto conductive parts – reaching all surfaces including recesses. Floating isolated output, low ripple without choke, and programmable ramp-up prevent edge burning.
AutomotiveAppliancesCarpentryMetal Casings
VOLTAGE
50 - 450 V
OUTPUT TYPE
DC
RIPPLE
< 2% (1% opt.)
V820V810V700Q500B

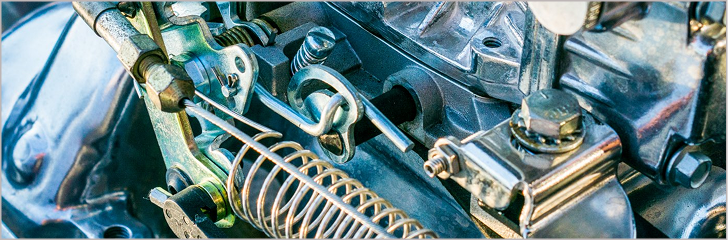

Hard chrome plating application
GALVANIC & PLATING

HARD CHROME PLATING

Deposits 25-500 µm of chromium for superior wear resistance and surface hardness. Pulse waveforms produce finer grain structure, higher corrosion protection, and a more lustrous finish vs. conventional DC.
AutomotiveCutting ToolsMarineHigh-Corrosion Environment
VOLTAGE
6 - 20 V
OUTPUT TYPE
DC (PP opt.)
RIPPLE
< 2%
V820V810V700Q500B

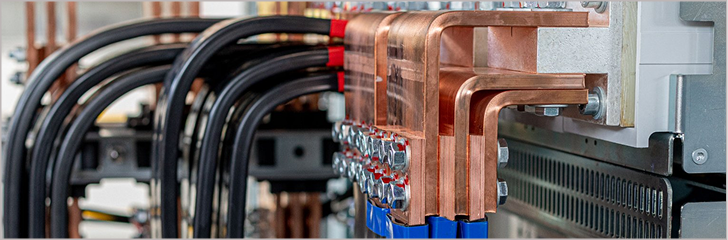

PPR advanced electroplating application
GALVANIC & PLATING

PPR ADVANCED ELECTROPLATING

Bipolar pulse-reverse waveforms (adjustable Ton/Toff, both polarities) improve deposit uniformity, reduce burning, and enable integrated coloring by modifying anodic film pore structures.
Precision Functional CoatingsDecorative AnodizingPlating
VOLTAGE
9 - 100 V
OUTPUT TYPE
PPR
RIPPLE
< 2%
Q300Q150Q100

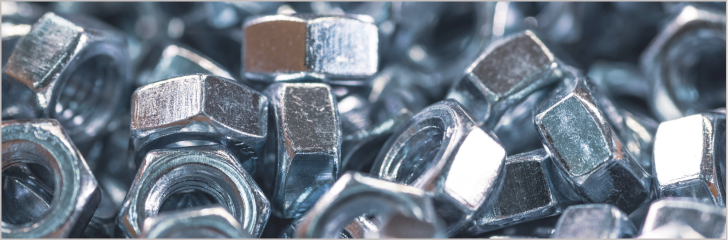

Zinc plating application
GALVANIC & PLATING

ZINC PLATING

Precision DC for electrowinning and electroplating from zinc electrolytes. PP/R waveforms modify grain growth to increase coating hardness and density across barrel and rack production lines.
AutomotiveBuilding IndustryFasteners & Screws
VOLTAGE
9 - 35 V
OUTPUT TYPE
DC, DCR, PPR
RIPPLE
< 2%
V700Q500BQ300

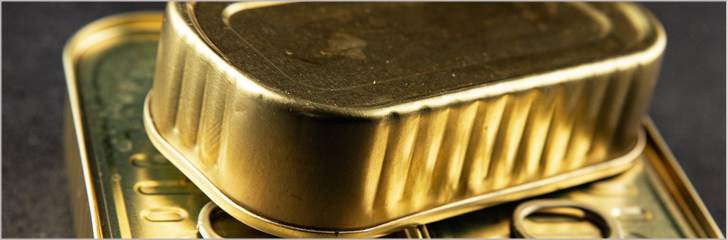

Tin plating application
GALVANIC & PLATING

TIN PLATING

Deposits thin, uniform tin layers on steel strip, copper, or PCBs. DCR for pre-plating cleaning. Pulse modifies tin hardness and surface appearance. Fast transient response for high-speed lines.
Food IndustryMedical DevicesPCB & Electronics
VOLTAGE
4 - 35 V
OUTPUT TYPE
DC, DCR, PPR
RIPPLE
< 2%
V820V810V700Q500B

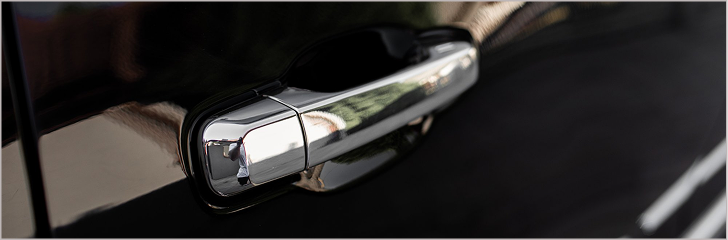

Plating on plastics POP application
GALVANIC & PLATING

PLATING ON PLASTICS (POP)

Electroplates copper, nickel, and chrome onto ABS, PC/ABS, and nylon parts for decoration, EMI shielding, or corrosion resistance. Critical for automotive trims, electronics housings, and sanitary goods.
Automotive TrimElectronics HousingAppliancesSanitary
VOLTAGE
1 - 20 V
OUTPUT TYPE
DC, DCR
RIPPLE
< 2% / < 1%
V820V810V700Q500B

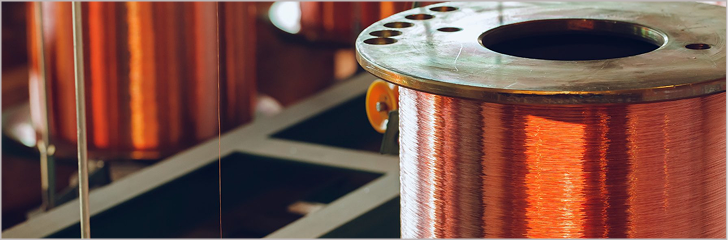

Wire and continuous strip plating application
GALVANIC & PLATING

WIRE & CONTINUOUS STRIP PLATING

Wire or strip passes continuously through the bath at line speed. Highest-precision current regulation for consistent coating thickness. Compatible with copper (4-6 V), nickel (5-12 V), and chrome (6-12 V).
Industrial WiresPower ContactsBattery Industry
VOLTAGE
4 - 12 V
OUTPUT TYPE
DC
RIPPLE
< 2% / < 1%
Q500BQ100

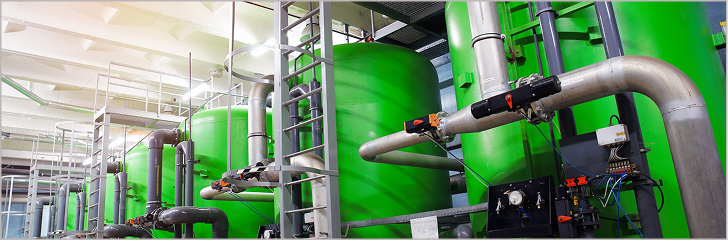

Water treatment application
WATER TREATMENT

WATER TREATMENT

Electrocoagulation, electrochlorination, electrooxidation, and cathodic protection. Removes oils, heavy metals, microorganisms, and organic contaminants. Multiple voltage modes per process type.
Municipal WaterIndustrial EffluentMarineFood Processing
VOLTAGE
3 - 100 V
OUTPUT TYPE
DC (CC, CV)
RIPPLE
< 2%
Q500BQ300Q150Q100

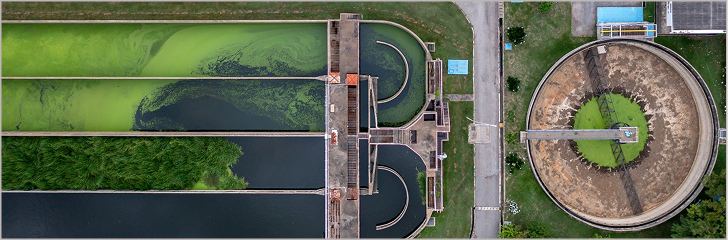

Waste water treatment application
WATER TREATMENT

WASTE WATER TREATMENT

Electrochemical removal of heavy metals and industrial contaminants before discharge. DC and DCR configurations adapt to different removal chemistries for regulatory compliance.
Idustrial DischargeEnvironmental ComplianceMetal Finishing
VOLTAGE
10 - 30 V
OUTPUT TYPE
DC, DCR
RIPPLE
< 2%
Q500BQ300Q150Q100

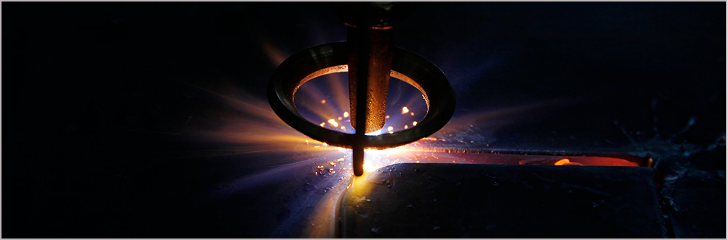

Plasma torch application
INDUSTRIAL

PLASMA TORCH

DC arc sustained between electrode and nozzle ionizes gas into a high-temperature plasma jet for metal cutting and surface modification. Fast, stable transient response is critical for arc stability.
Metal CuttingSurface ModificationDrills & ToolingGears
VOLTAGE
100 - 400 V
OUTPUT TYPE
DC
RIPPLE
N/A
V820V810

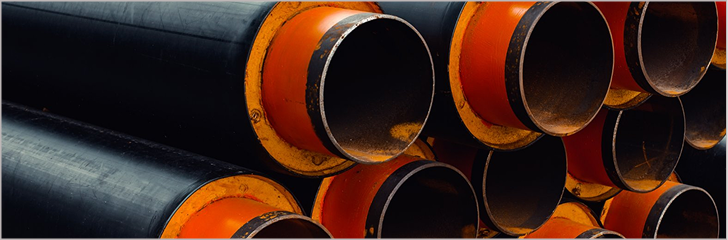

Cathodic protection application
INDUSTRIAL

CATHODIC PROTECTION

Impressed-current system reverses natural corrosion cell polarity on steel tanks, pipelines, and submerged structures – extending service life by decades with low-maintenance, permanent installation.
Oil & Gas InfraestructureBuilding IndustryAutomotive
VOLTAGE
10 - 50 V / up to 10 A
OUTPUT TYPE
DC
RIPPLE
< 2%
S075
