Q150

High-output tabletop unit

UP TO 1000 A

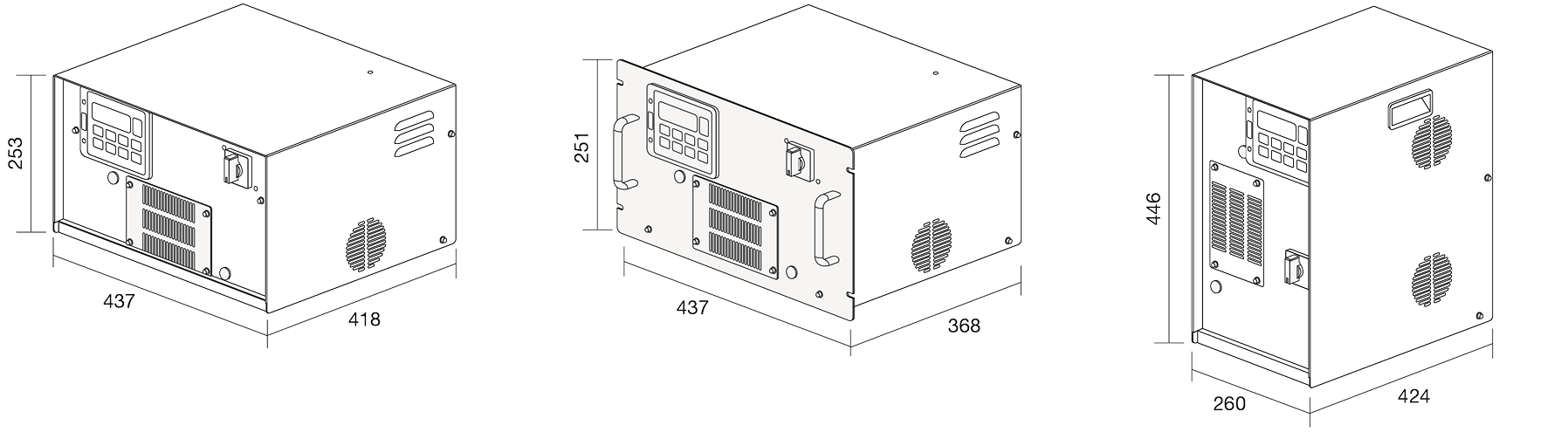

A versatile and compact full-bridge switch-mode rectifier with a 3-phase input in our Quasar lineup. It uses two parallel semi-modules in the same enclosure for better reliability and a power output of up to 16 kW. In addition, the rectifiers can be interconnected for more power output. The enclosure formats offered are desktop, rack, and vertical, both water and air cooled, to ease implementation across different workspaces. Manual or automatic control is possible, which allows to program waveforms, monitoring Ah, and more. Reversed output and pulsed waveforms are also available.

CHARACTERISTICS

600 A Air cooled / 1000 A Water cooled
Space saving
Manual or automatic control
Ah counter, ramp software and more
Ease of service
Expandable for more power
Reverse polarity
Pulse plating available

MAIN VOLTAGE (3 PHASE)

208 / 230 / 400 / 440 / 480 / 575 VAC

± 10% / 50 - 60 Hz

MAX. OUTPUT POWER

16 kW

MAX. OUTPUT VOLTAGE

160 VDC

MAX. OUTPUT CURRENT

1000 A

CURRENT RIPPLE

<2% (<1% on request)

OPERATION MODE

Current or voltage control

CURRENT REGULATION RANGE

2 - 100%

VOLTAGE REGULATION RANGE

5 - 100%

ACCURACY

1% of full scale

POWER FACTOR

>0.95 @ rated load

EFFICIENCY

89 - 94% @ rated load

COLOR

RAL 3004

COOLING

Air and Water

DEGREE OF PROTECTION

IP31 Air cooled

IP45 / IP54 Water cooled

WEIGHT

Max. 38 kg

AMBIENT TEMPERATURE

40ºC (up to 50ºC on request)

INPUT WATER COOLING TEMPERATURE

19 - 28ºC (up to 35ºC on request)

REVERSE POLARITY

Allows switching the output between forward and reverse polarity.

1MS PULSE

This function is available when rise and fall times faster than 1 second are critical for the production process. Done by a combination of software and a selection of electrical components. Recipe patterns can be followed by controlling the CPU to achieve a rise time and fall time of 1ms with no overshoot when using resistive loads.

LOWER RIPPLE

Reduces the DC ripple to < 1%.

UL COMPLIANCE

Certain components are changed to meet UL standard compliance.

E-STOP

The E-Stop system can be configured to cut the output power of the rectifier. Complies with international standards IEC 62061 SIL Level 3 Protection and ISO 13849-1 Protection Level E. The E-Stop of rectifiers can be interconnected for simultaneous emergency activation when necessary to ensure operational safety. The E-Stop can be activated by peripheral devices when emergency conditions are detected. It is possible to configure for automatic or controlled reset.

COMM. PROTOCOLS

A wide range of industrial communication standards via a certified HMS AnyBus IC. Communication protocols are not CPU software dependent and are interchangeable with ease. The Data Map structure is not communication protocol dependent, allowing for simplified system integration. Optional communication protocols: Profibus-DP, DeviceNet, EthernetIP, Profinet, Modbus-TCP.

ANALOGUE INTERFACE

Allows for the control of the rectifier with an analogue PLC.

IOS

Adapter to easily access the output pins via a terminal block.

MULTI-TOWER CONNECTION

COMM. ENCLOSURE

Metal enclosure to cover the comm outputs of the rectifiers. Does not apply to Vega.

OPERATING TEMP

Operating ambient temperatture up to 50 C with derating.

STAINLESS STEEL ENCLOSURE

Stainless Steel enclosures available for the Quarsar and Vega Wall-mounted units. On special request, other equipment can be offered with a Stainless Steel cover.

SOLENOID

An optional installation accessory that can be used to segregate the incoming water flow of the system. Prevents condensation when the rectifier is not in operation. It is not available when using the integrated Water to Water Heat Exchanger.
