A versatile and compact full-bridge switch-mode rectifier with a 3-phase input in our Quasar lineup. It uses two parallel semi-modules in the same enclosure for better reliability and a power output of up to 16 kW. In addition, the rectifiers can be interconnected for more power output. The enclosure formats offered are desktop, rack, and vertical, both water and air cooled, to ease implementation across different workspaces. Manual or automatic control is possible, which allows to program waveforms, monitoring Ah, and more. Reversed output and pulsed waveforms are also available.
Q150

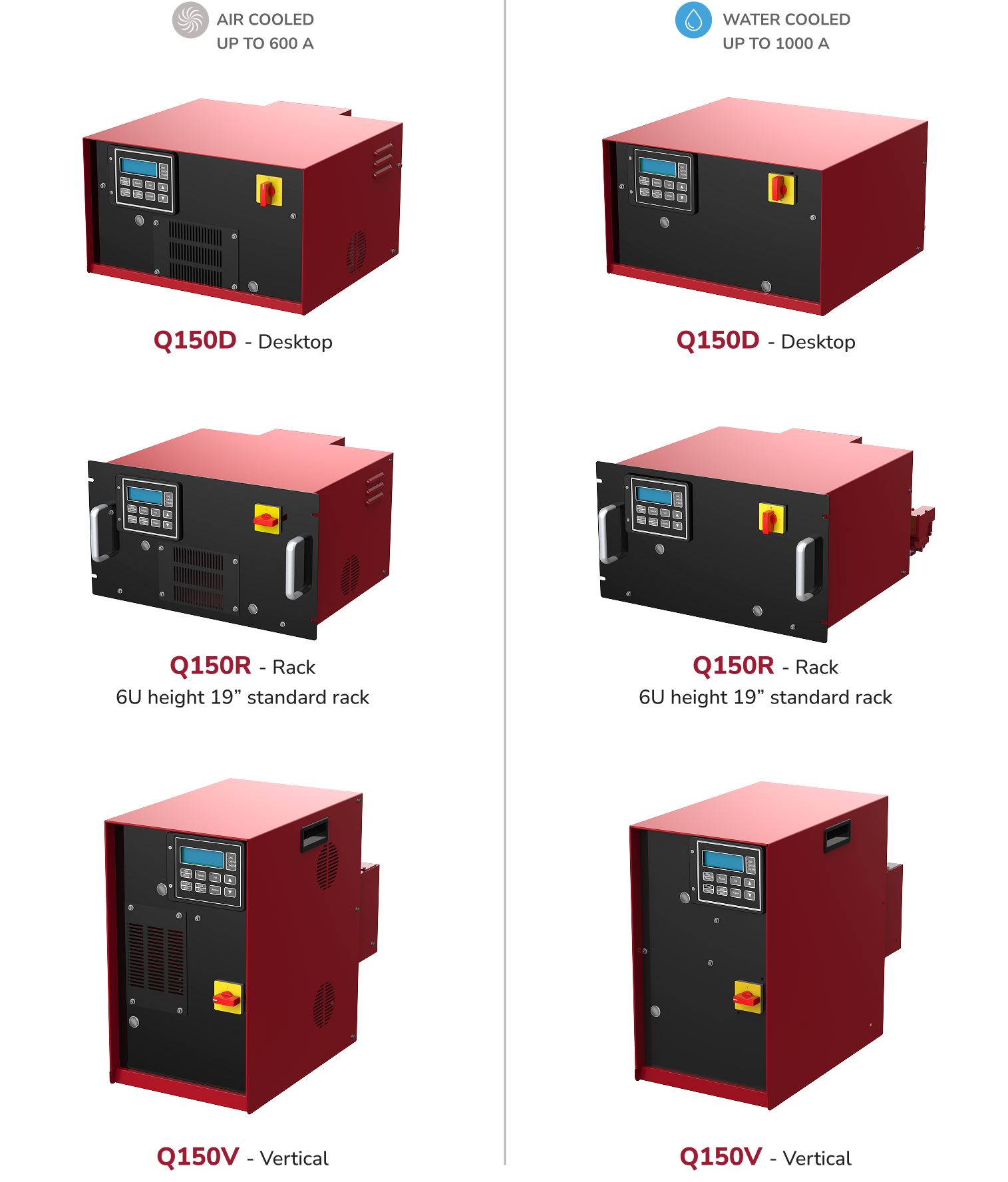

AIR AND WATER COOLED
UP TO 1000 A
- 600 A Air cooled / 1000 A Water cooled
- Space saving
- Manual or automatic control
- Ah counter, ramp software and more
- Ease of service
- Expandable for more power
- Reverse polarity
- Pulse plating available

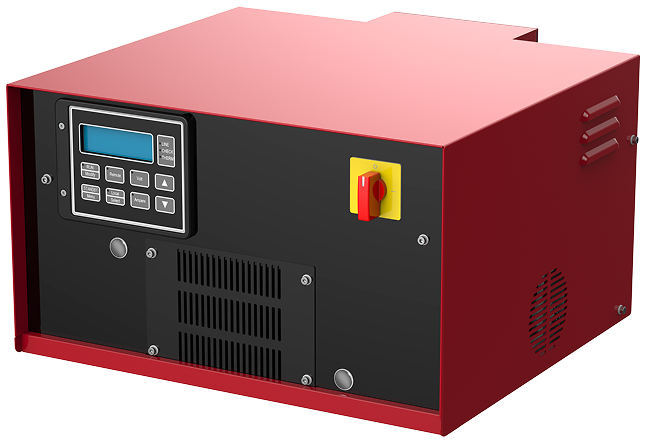

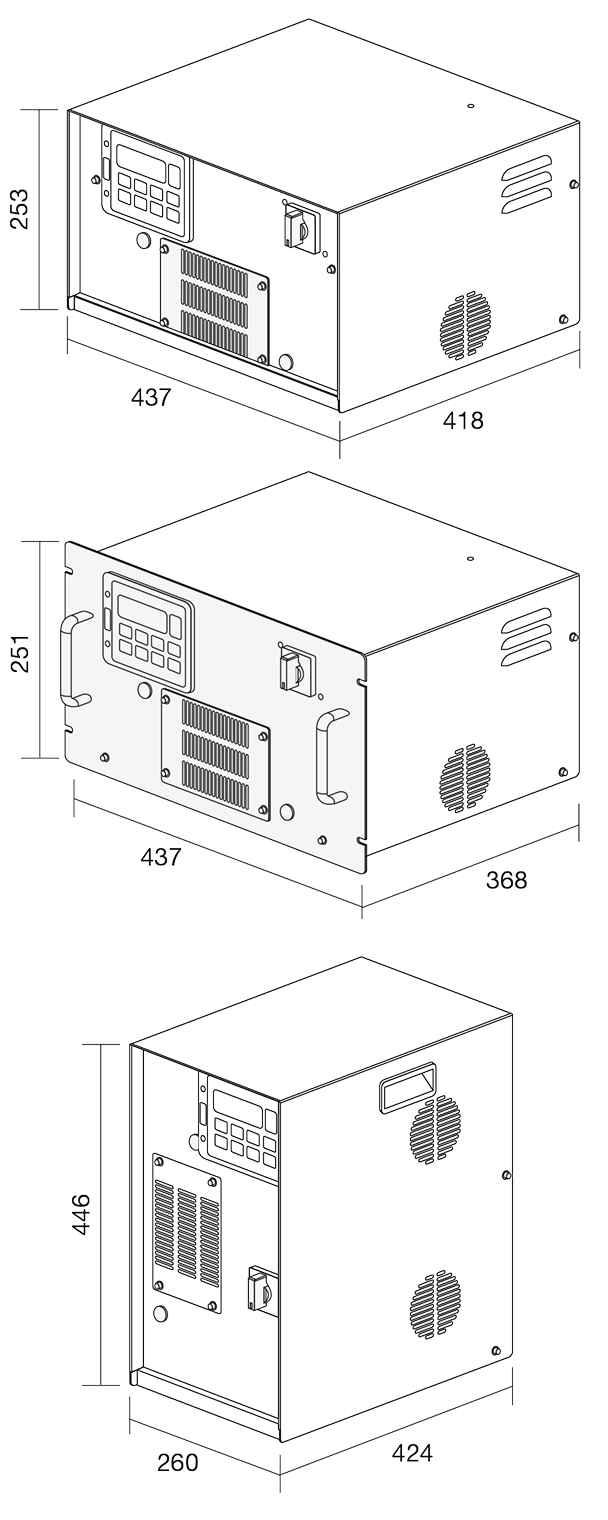

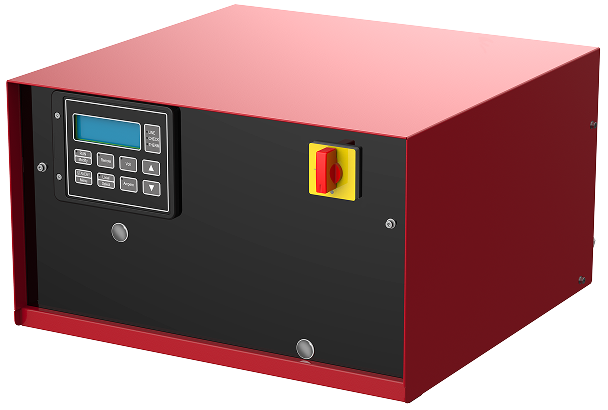

Q150D – Desktop

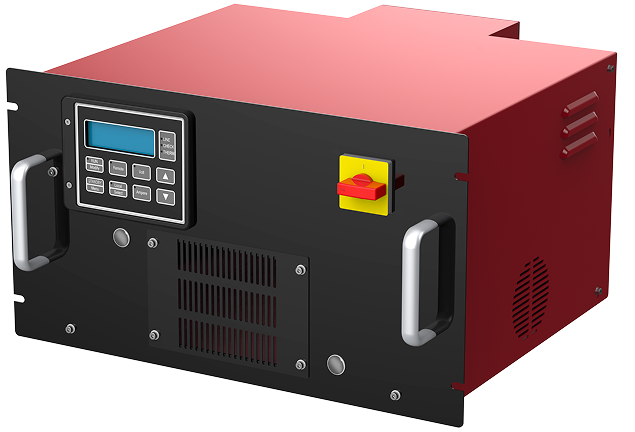

Q150R – Rack
6U height 19" standard rack

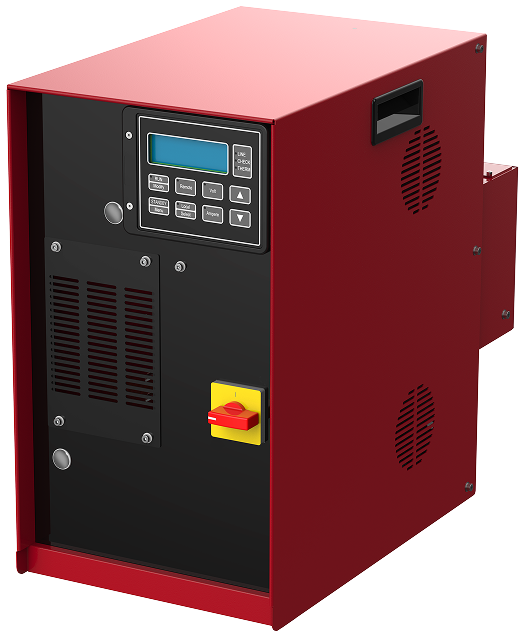

Q150V – Vertical
Q150D – Desktop
Q150R – Rack
6U height 19" standard rack
Q150V – Vertical
Q150D – Desktop
Q150R – Rack
6U height 19" standard rack
Q150V – Vertical
Q150D – Desktop
Q150R – Rack
6U height 19" standard rack
Q150V – Vertical
| MAIN VOLTAGE (3 PHASE) | 208 / 230 / 400 / 440 / 480 / 575 VAC ± 10% / 50 - 60 Hz |
| MAX. OUTPUT POWER | 16 kW |
| MAX. OUTPUT VOLTAGE | 160 VDC |
| MAX. OUTPUT CURRENT | 1000 A |
| CURRENT RIPPLE | <2% (<1% on request) |
| OPERATION MODE | Current or voltage control |
| CURRENT REGULATION RANGE | 2 - 100% |
| VOLTAGE REGULATION RANGE | 5 - 100% |
| ACCURACY | 1% of full scale |
| POWER FACTOR | >0.95 @@ rated load |
| EFFICIENCY | 89 - 94% @@ rated load |
| COLOR | RAL 3004 |
| COOLING | Air and Water |
| DEGREE OF PROTECTION | IP31 Air cooled IP45 / IP54 Water cooled |
| WEIGHT | Max. 38 kg |
| AMBIENT TEMPERATURE | 40ºC (up to 50ºC on request) |
| INPUT WATER COOLING TEMPERATURE | 19 - 28ºC (up to 35ºC on request) |
GENERAL OPTIONS
REVERSE POLARITY
Allows switching the output between forward and reverse polarity.
1MS PULSE
This function is available when rise and fall times faster than 1 second are critical for the production process. Done by a combination of software and a selection of electrical components. Recipe patterns can be followed by controlling the CPU to achieve a rise time and fall time of 1ms with no overshoot when using resistive loads.
LOWER RIPPLE
Reduces the DC ripple to < 1%.
UL COMPLIANCE
Certain components are changed to meet UL standard compliance.
E-STOP
The E-Stop system can be configured to cut the output power of the rectifier. Complies with international standards IEC 62061 SIL Level 3 Protection and ISO 13849-1 Protection Level E. The E-Stop of rectifiers can be interconnected for simultaneous emergency activation when necessary to ensure operational safety. The E-Stop can be activated by peripheral devices when emergency conditions are detected. It is possible to configure for automatic or controlled reset.
COMM. PROTOCOLS
A wide range of industrial communication standards via a certified HMS AnyBus IC. Communication protocols are not CPU software dependent and are interchangeable with ease. The Data Map structure is not communication protocol dependent, allowing for simplified system integration. Optional communication protocols: Profibus-DP, DeviceNet, EthernetIP, Profinet, Modbus-TCP.
ANALOGUE INTERFACE
Allows for the control of the rectifier with an analogue PLC.
IOS
Adapter to easily access the output pins via a terminal block.

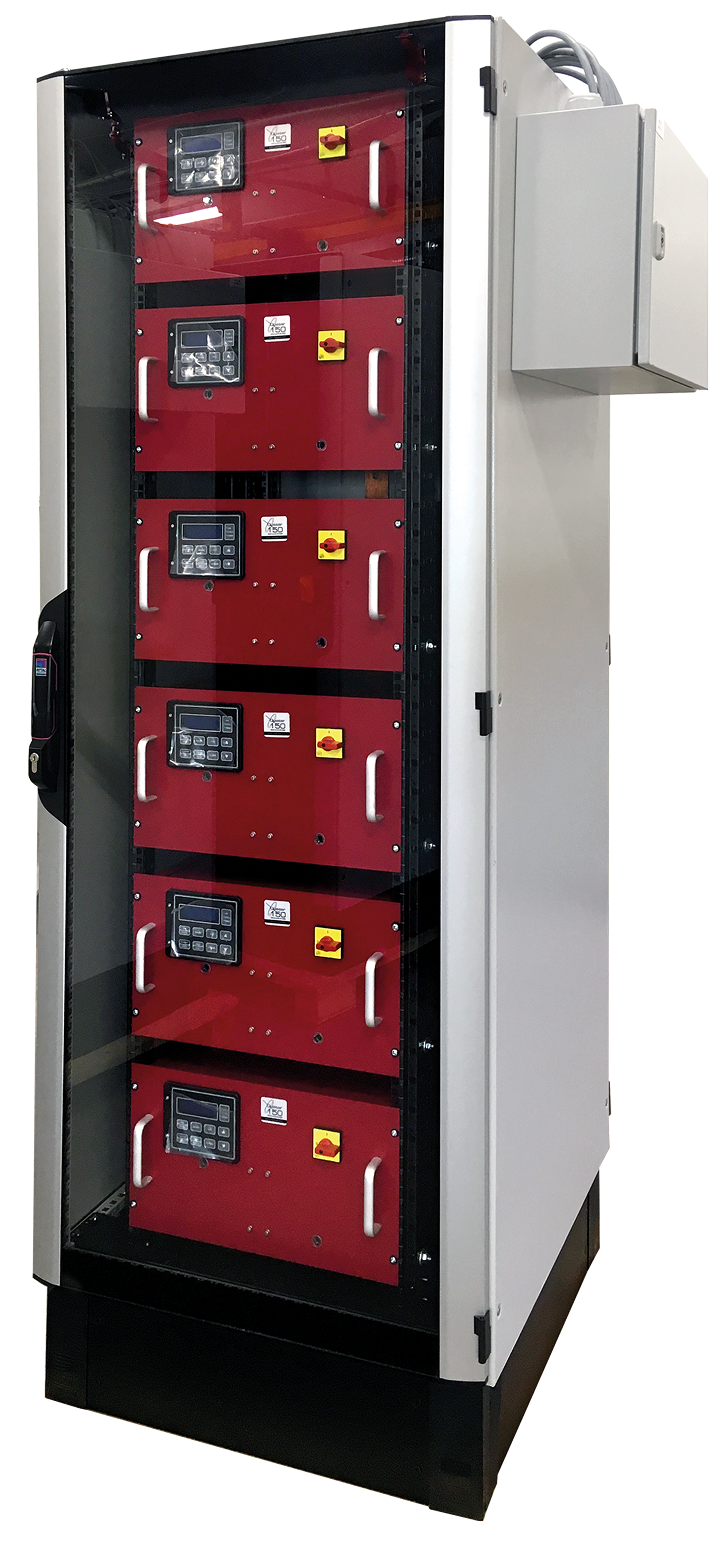

MULTI-TOWER CONNECTION
This function is available when rise and fall times faster than 1 second are critical for the production process. Done by a combination of software and a selection of electrical components. Recipe patterns can be followed by controlling the CPU to achieve a rise time and fall time of 1ms with no overshoot when using resistive loads.
COMM. ENCLOSURE
Metal enclosure to cover the comm outputs of the rectifiers. Does not apply to Vega.
OPERATING TEMP
Operating ambient temperatture up to 50 C with derating.
STAINLESS STEEL ENCLOSURE
Stainless Steel enclosures available for the Quarsar and Vega Wall-mounted units. On special request, other equipment can be offered with a Stainless Steel cover.
SOLENOID
An optional installation accessory that can be used to segregate the incoming water flow of the system. Prevents condensation when the rectifier is not in operation. It is not available when using the integrated Water to Water Heat Exchanger.
ACCESORIES
Remote Control
REM8E, 24VDC / 24VAC
REM8, 85-264VAC
REMMT1
Portable equipment for Quasar - CTRL / CPU cards adjustment and functional test
RSM09A
QUASAR AND VEGA RECTIFIER SIMULATOR (with CPU090, 4L display)
PSM08A
Quasar rectifier simulator, CPU080, 4L display
