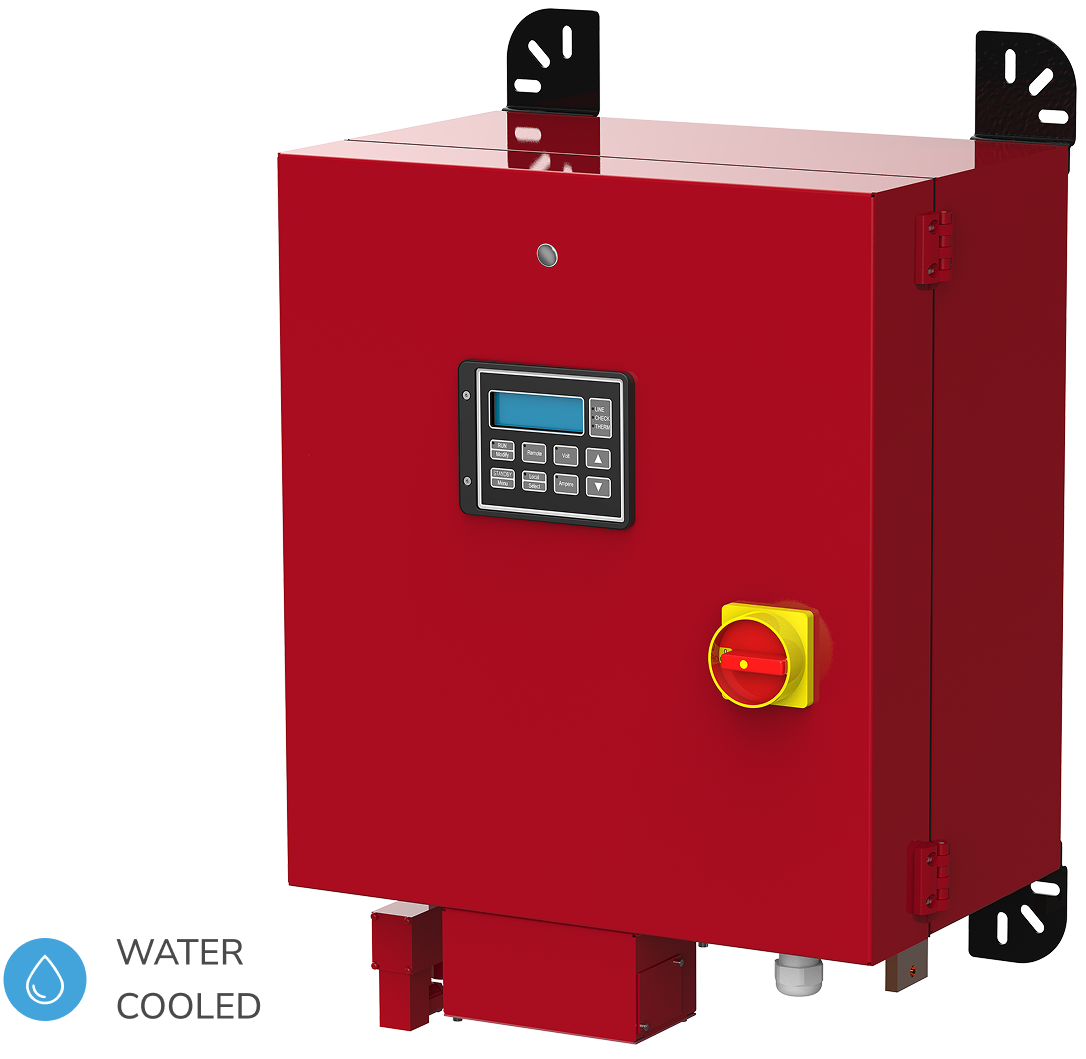

Wall-mounted full-bridge switch-mode rectifier with a 3-phase input and floated output poles, the smallest in our Vega lineup. It has two water-cooled semi-modules operating in parallel for improved reliability, with a total output power of up to 24 kW. Additionally, the rectifiers can be interconnected for more power output. It is wall-mounted to reduce footprint requirements for compact, simplified, and easy-to-service installations. Manual or automatic control is possible, allowing the programming of waveforms, monitoring Ah, and more.
V150 WALL
WATER COOLED
UP TO 1500 A
- 1000 A Water cooled
- Space saving

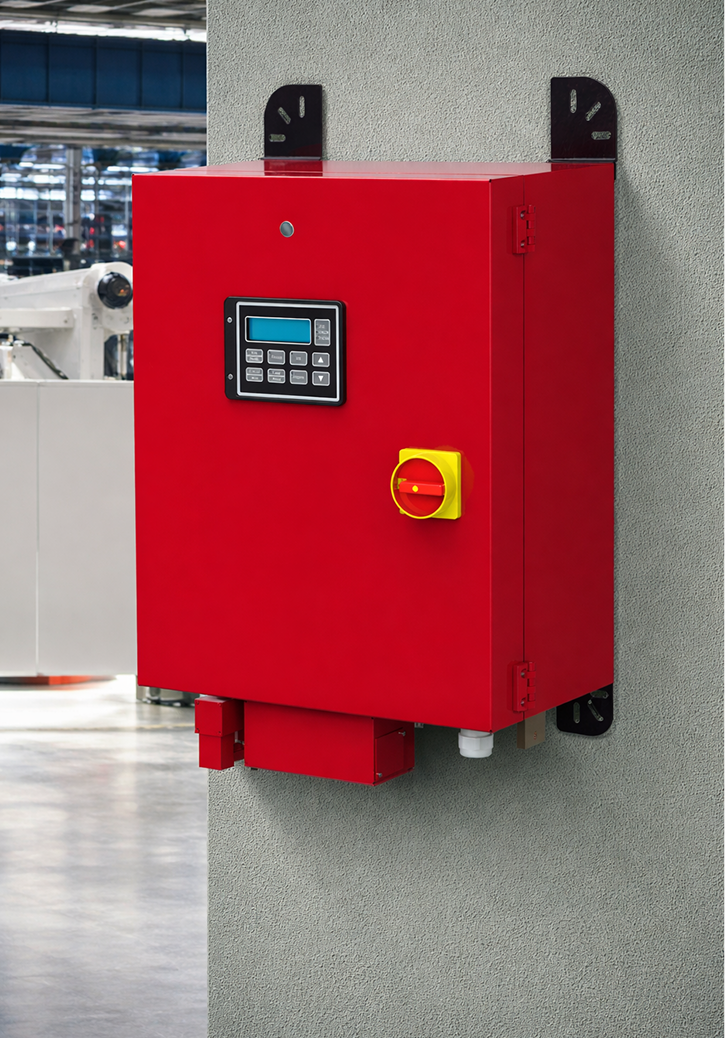

- Wall installation for better use of space
- Manual or automatic controlled
- Ah counter, ramp software and more
- Ease of service
- Expandable for more power
- Reverse polarity
- Pulse plating available
| MAIN VOLTAGE (3 PHASE) | 208 / 230 / 400 / 440 / 480 / 575 VAC ± 10% / 50 - 60 Hz |
| MAX. OUTPUT POWER | 24 kW |
| MAX. OUTPUT VOLTAGE | 5 - 600 VDC |
| MAX. OUTPUT CURRENT | 10 - 1500 A DC |
| CURRENT RIPPLE | <2% (<1% on request) |
| OPERATION MODE | Current or voltage control |
| CURRENT REGULATION RANGE | 2 - 100% |
| VOLTAGE REGULATION RANGE | 5 - 100% |
| ACCURACY | 1% of full scale |
| POWER FACTOR | >0.92 @@ rated load |
| EFFICIENCY | 89 - 94% @@ rated load |
| COLOR | RAL 3004 |
| COOLING | Water |
| DEGREE OF PROTECTION | IP31 Air cooled IP42 / IP54 Water cooled |

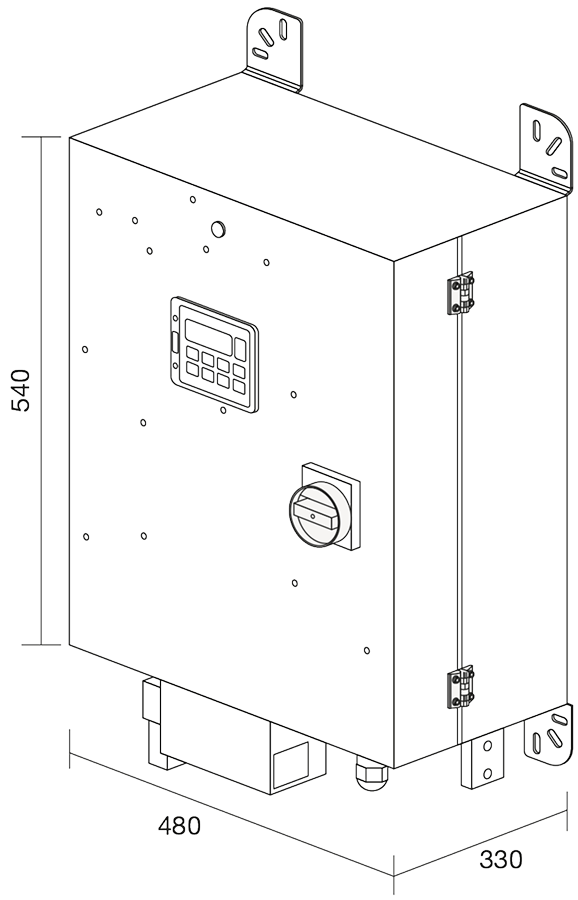

| WEIGHT | Max. 35 kg |
| AMBIENT TEMPERATURE | 40ºC (up to 50ºC on request) |
| INPUT WATER COOLING TEMPERATURE | 19 - 35ºC (up to 35ºC on request) |
GENERAL OPTIONS
DC HIGHER EFF
Improved efficiency by utilizing synchronous rectification technology to minimize losses...
REVERSE POLARITY
Allows switching the output between forward and reverse polarity.
1MS PULSE
This function is available when rise and fall times faster than 1 second are critical…
AUX POWER FOR THE CPU
An input to supply power directly to the CPU…
LOWER RIPPLE
Reduces the DC ripple to < 1%.
UL COMPLIANCE
Certain components are changed to meet UL standard compliance.
E-STOP
The E-Stop system can be configured to cut the output power…
COMM. PROTOCOLS
A wide range of industrial communication standards…
ANALOGUE INTERFACE
Allows for the control of the rectifier with an analogue PLC.
MULTI-TOWER CONNECTION
This function is available when rise and fall times faster than 1 second are critical…
OPERATING TEMP
Operating ambient temperature up to 50°C with derating.
STAINLESS STEEL ENCLOSURE
Stainless Steel enclosures available…
SOLENOID
An optional installation accessory…
ACCESORIES
Remote Control
Remote control REM8E, 24VDC / 24VAC
Remote control REM8 that includes analog/digital input and output ports REM8, 85-264VAC.
REMMTV
Portable equipment to adjust and perform functional tests of the CTRL and CPU cards for Vega.
RSM09A
Quasar and Vega simulator (with CPU090 and 4-line display).
